Fluke 5520A Calibrator
Replacement Parts & Maintenance Services
Maintenance & Repair Services

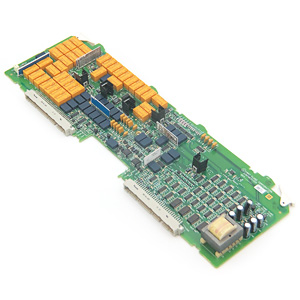

A5 Impedance Board Repair
- No resistance or capacitance output
- 399 fault when sourcing resistance or capacitance
- Unstable, inaccurate, or OOT (out-of-tolerance) resistance or capacitance
- 4-wire compensation inoperative
A5 faults often occur after excessive current or voltage has been applied to the calibrator's output terminals. DO NOT attempt to calibrate Meg-Ohm meters or insulation testors with a 5520A! Damage to A5 is likely to result.
Non-refundable evaluation fee only; a repair quote will be generated and the fee will be credited toward the repair if the quote is accepted.
Non-refundable evaluation fee only; a repair quote will be generated and the fee will be credited toward the repair if the quote is accepted.
A5 Impedance Board Evaluation Fee
$ 250.00
Looking for repair services?
Send your 5520A to us for a nonobligatory quote! (evaluation fee applies)
Replacement Parts & Accessories
55xxA/57x0A Power Button Label
Fits models: 5500A, 5520A, 5522A, 5700A, 5720A
Power Button Label
$ 45.00
2 Available
55x0A/57x0A Encoder Knob
Fits models: 5500A, 5520A, 5522A, 5700A, 5720A
Encoder Knob
$ 35.00
5 Available
55x0A/57x0A/5820A Case Foot
Fits models: 5500A, 5520A, 5700A, 5720A, 5790A, 5820A
Case Foot
$ 35.00
4 Available
55xxA Power Button
Fits models: 5500A, 5520A, 5522A
Power Button
$ 25.00
4 Available
55x0A/57xxA Side Handle
Fits models: 5500A, 5520A, 5700A, 5720A
Side Handle
$ 75.00
5 Available
5-Way Binding Post Terminal, Red
Fits models: 525A, 5520A, 5522A, 5700A, 5720A, 5725A, 5730A, 5790A, 57LFC, 7526A, 8508A
5-Way Binding Post Terminal, Red
$ 45.00
7 Available
5-Way Binding Post Terminal, Black
Fits models: 525A, 5520A, 5522A, 5700A, 5720A, 5725A, 5730A, 5790A, 57LFC, 7526A, 8508A
5-Way Binding Post Terminal, Black
$ 45.00
8 Available
55xxA Power Button Push Rod
Fits models: 5500A, 5520A, 5522A
Power Button Push Rod
$ 45.00
1 Available
55xxA/5820A Air Filter
Fits models: 5500A, 5502A, 5520A, 5522A, 5820A
Air Filter
$ 75.00
7 Available
55xxA/5820A Air Filter Frame
Fits models: 5500A, 5502A, 5520A, 5522A, 5820A
- NOTICE: unit serial number is required to purchase this part
Air Filter Frame
$ 75.00
9 Available
